Scott Aerator Triad Pond Fountain

Description

1 HP Spray Dimensions

1.5 HP Spray Dimensions

3 HP Spray Dimensions

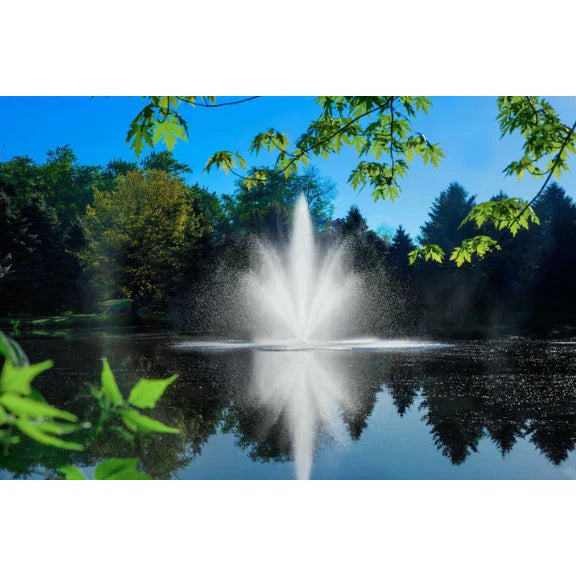

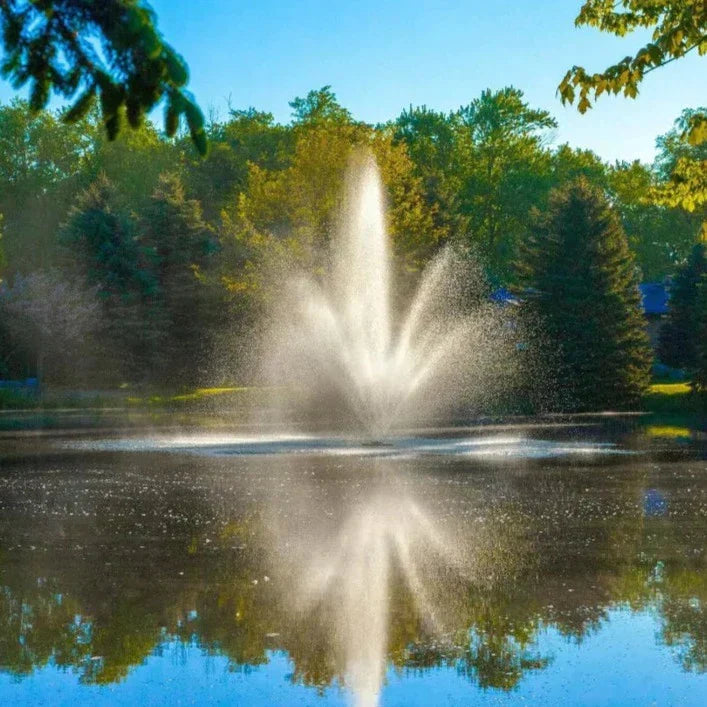

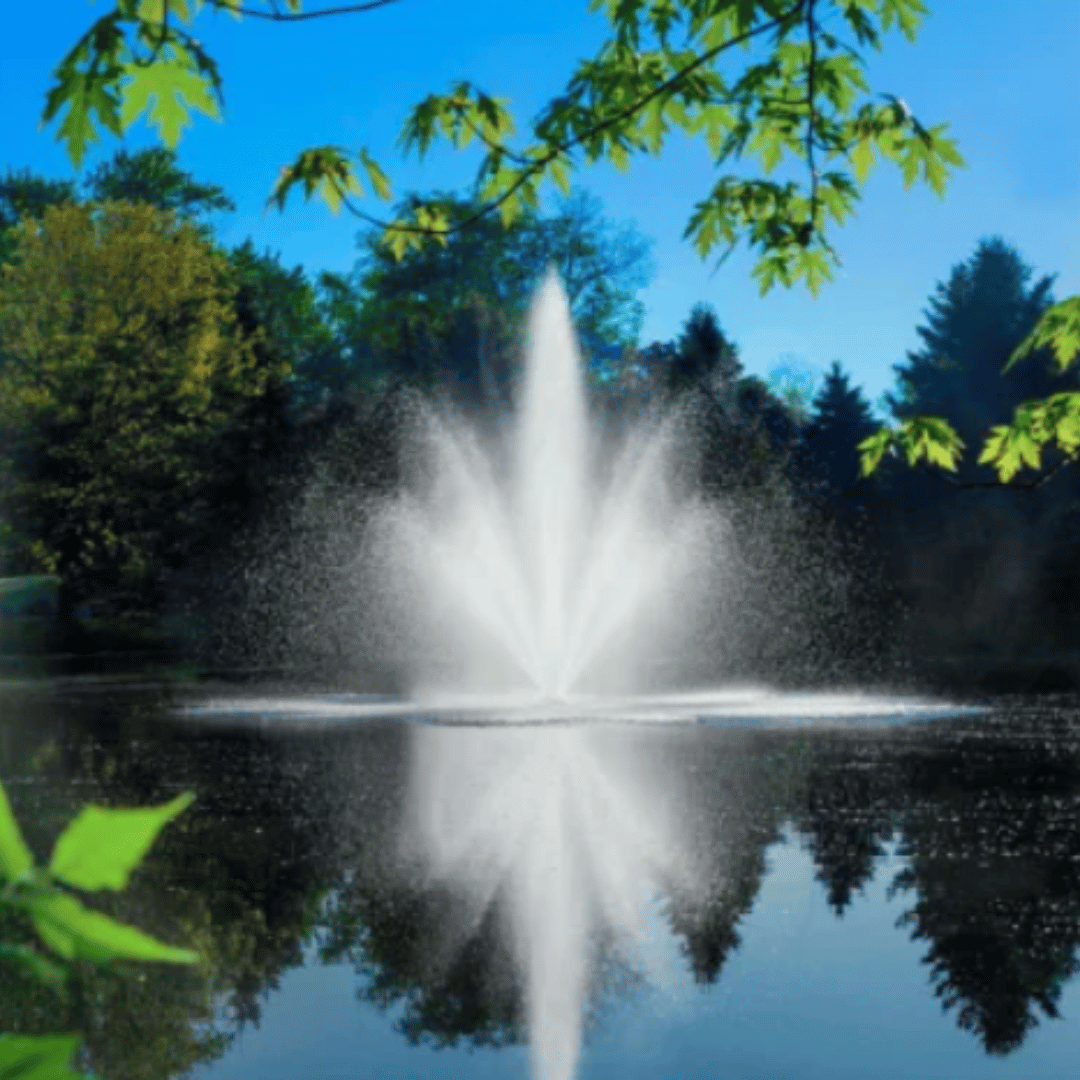

• Floating fountain for ponds and lakes with three distinct display patterns.
• Scott Aerator fountains are built for year-round use and can remain in the water during winter.
• Includes fountain pump, three nozzles, float, bottom screen, and power cord.
• Nozzles provided: Cambridge, Skyward & Gusher.
• Optional lighting, additional nozzles, and timers are available.
• Engineered for continuous 24-hour operation.
• Simple setup with no maintenance needed.
• Available in 1 HP, 1.5 HP, and 3 HP models.
• Suitable for saltwater environments.
• 5-year warranty on the motor.
• Tested and approved to meet UL and National Electric Code standards as complete units.
• GFCI protection is required. Disconnect power when swimmers are present.
• Ideal for HOA’s, golf courses, recreational ponds and lakes, commercial properties, country clubs, retention ponds, farm ponds, and business parks.

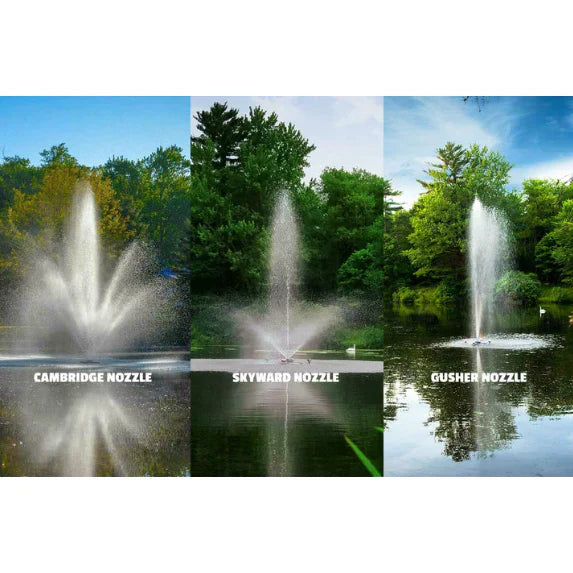

Fountains included in this package

• Cambridge Fountain
• Skyward Fountain
• Gusher Fountain

LED Lights (Optional)

• Available for purchase now or later. Light sets easily attach to the float.
• Recommended 2-light sets for 1.5 HP and below.
• Recommended 4-light sets for 2 HP & 3 HP.

Timers (Optional)

• Available for purchase now or later.
• Timers control fountains only, not lights.
• FAQ: The residential 230V timer has a plastic enclosure, while the commercial version has a metal enclosure. Both function the same way.

Our Triad fountain, the newest addition to the Scott Aerator Company product line, will add a beautiful focal point to your outdoor space while improving the health of your pond. Available with both 115V and 230V motors, this water feature includes three interchangeable brass nozzles that can be swapped out quickly without tools.

All Scott Aerator water features are designed to eliminate the need for expensive and time-consuming winterization supplies and processes. You can leave your fountain running, turn off the power, and forget about it during winter. Once the water thaws in spring, restore power, and you're ready to go. All components can withstand sub-zero temperatures without damage.

This fountain features a robust, oil-free motor designed for continuous operation. With a 5-year motor warranty, you can trust that this fountain will last for years. The Scott Aerator Triad Pond Fountain can circulate 75 gallons of water per minute, creating a stunning display in your lake or pond.

Features:

• Includes a 100-foot long, 12-gauge submersible electric cable, with longer lengths available.
• Light kits can be added at the time of purchase or later.
• Approved for saltwater use.
• Requires two 25-pound weights or concrete blocks for anchoring (not included).
• Requires two nylon ropes for anchoring (not included).
• Designed for continuous 24-hour operation.
• Minimum pond depth of 34 inches required.

Specs

Required Pond Depth

Electrical

Installation

1. Assemble The Unit

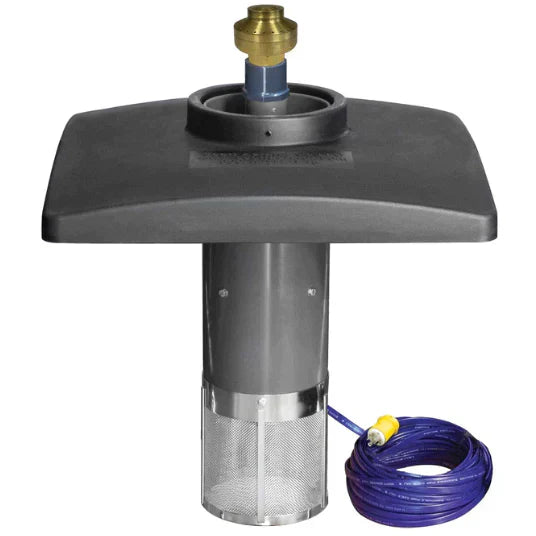

Assembling Scott Aerator Fountains takes about 15-20 minutes. Instructions will be included with your fountain. The fountain kits come with:

• Pump with cylindrical casing and attached power cable
• Square float platform
• Protective stainless steel filter
• Decorative nozzle (not applicable to the DA-20)
• 5/16"x2" stainless steel bolts
• Stainless steel nuts & washers
• Self-tapping stainless steel screws

Tools Needed: A wrench (or socket driver) and pliers.

Assembly Steps:

1. Place the fountain housing on a stable surface with the pump discharge facing up.
2. Attach nylon rope (not included) to the two stainless steel eyebolts for anchoring.
3. Position the float and secure it with the included bolts, washers, and nuts.
4. Turn the fountain upside down, remove the Styrofoam doughnut, and install the stainless steel filter, aligning the pre-drilled holes with the filter's position marks. Secure the filter with the provided self-tapping screws.

2. Attach Lights (If you did not order lights, skip this step)

Scott Aerator fountain light kits attach easily to the square float platform. The light kits include:

• (2) or (4) LED light fixtures with power cable
• 1/2" bolts & nuts
• (2) or (4) stainless steel arm brackets
• Timer/control unit
• Remote control (only for color-changing lights)

Tools Needed: Wrench & Pliers

*Note: The included timer/control unit is necessary for operating the lights. Do not disconnect the cord from the control unit, as this will void the warranty.

Assembly Steps:

1. Attach each arm assembly to the water feature, ensuring the “L” faces upward. Remove one of the 2" bolts securing the float to the water feature, align the holes with the stainless steel arm, and reinsert the bolt with washer through the housing, float, and arm. Secure with washer and nut. Repeat for the remaining arms.
2. Attach each light to the slotted end of the stainless steel arms. Insert a 1/2" x 1/4" bolt through each light bracket and arm, securing with a 1/4" nut. Adjust the lights along the arm by loosening the lock nut, sliding to the desired position, and retightening.
3. Connect the lights to the Timer Control Unit by aligning pins and screwing the connector together a half turn only. Avoid over-tightening to prevent damage to the O-ring or wiring.

3. Place in Water

• Once assembled, the unit is ready to be placed in the water for final setup and anchoring.
• Handle the fountain carefully; avoid placing its weight on the stainless steel filter.
• Once the fountain head is submerged, secure it by screwing it into place (not applicable to the DA-20).

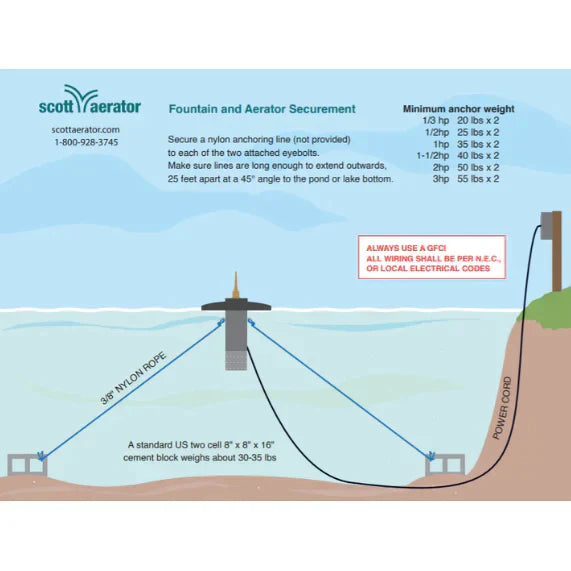

• Float the fountain to the desired location and secure the attached nylon ropes to the shore or use two concrete blocks submerged at least 20 feet apart.
• Finally, plug in your fountain and lights to the power source. Always use a ground fault circuit interrupter (GFCI) and consult a licensed electrician for installation.

Buying Guide

Choosing Horsepower

• The horsepower affects the size and flow rate of your fountain's spray. Higher horsepower means more water movement and a larger or thicker spray.

• Selecting horsepower depends on your budget and pond size. A good guideline is to maintain at least 10 feet between the fountain spray and the pond's edge.

Choosing Voltage

• When in doubt: Contact us.

• If using 115V power, be aware of the maximum distances from pump to breaker (including the power cord).

• For 230V, distance is generally not a concern.

Choosing LED Lights (Optional)

• Available for purchase now or later. Light sets easily attach to the float.

• Lights operate on 110V and come with their own power cord.

• Choose between single-color warm white LED lights or color-changing LED lights.

• Both options include a programmable timer, and the color-changing lights come with a remote control that works up to 1,000 feet away.

• 2-light sets are recommended for 1 HP and below.

• 3-light sets are recommended for 1.5 HP and 2 HP.

• 4-light sets are recommended for 3 HP.
