Vertex FanJet Floating Fountain Series

Bring a stunning water feature to your pond or lake with the Vertex FanJet floating fountain. This series creates a captivating display featuring a prominent central spray and a graceful lower pattern, adding visual interest to any body of water. The FanJet is powered by a UL-certified control panel and a robust submersible turbine pump. All components are fully waterproof and constructed with high-quality, corrosion-resistant materials, ensuring years of reliable operation for your property or community.

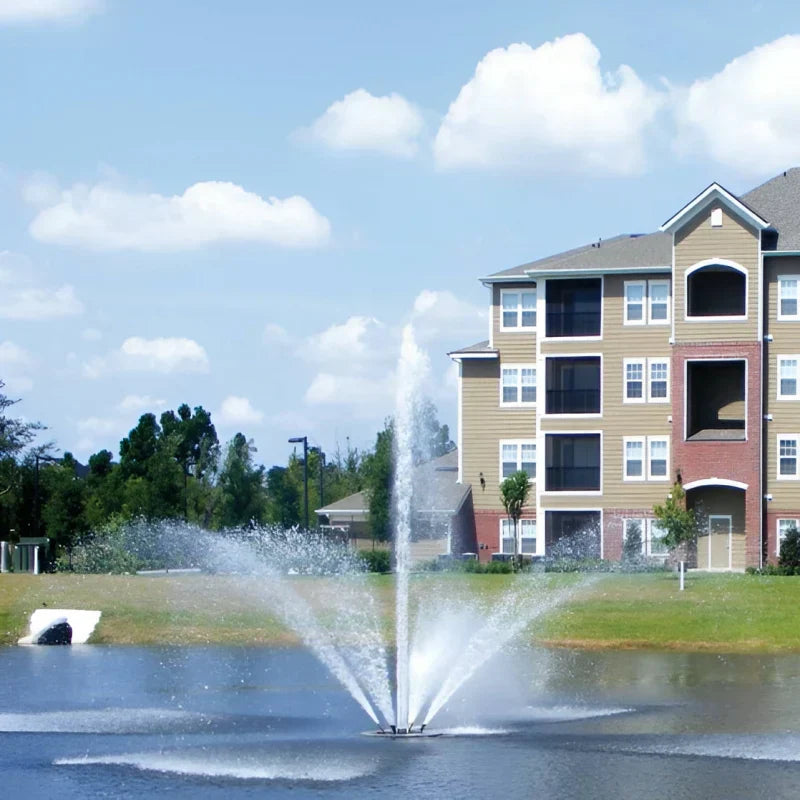

Vertex FanJet Floating Fountain Series On Water Display With Apartment On Background

Features & Benefits

Nozzles

  • Precision-crafted from brass/bronze or stainless steel

Pumps / Motors

  • Efficient turbine pump and motor assembly
  • Built from stainless steel
  • Water-cooled design: requires no oil, seals, or o-rings for maintenance
  • Includes a 4-year warranty

Flotation

  • Made from rotocast polypropylene with UV protection for long-term use
  • Features separate compartments for simple leveling adjustments
  • Comes with a 4-year warranty

Control Panel

  • UL listed, meeting National Electrical Code standards
  • Housed in weather-resistant steel enclosures

Submersible Light Fixtures

  • Energy-efficient LED lights, providing 140 lumens per watt
  • Encased in stainless steel
  • Backed by a 2-year warranty

Cables

  • STW-A rated
  • Covered by a 4-year warranty

Specifications

Vertex FanJet Floating Pond Fountain


 10 HP Unit
 15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6' 7' 7'
 8'
Center Height (A) 25' 30'
 35' 45′
Side Height (B) 8' 10' 12' 15'
Diameter (C) 35′ 40′ 45′ 50'
LED Lights 7 7 9 9
Total Wattage 301W 301W 387W 387W
AMP Draw 3.5 3.5 4.5 4.5
Available Phase 1 & 3 1 & 3 3 3
1 Phase (Volts) 230 230 -
 -
3 Phase (Volts) 208 or 230 208 or 230 230 230
Display Heads Warranty 4-Year
 4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year
