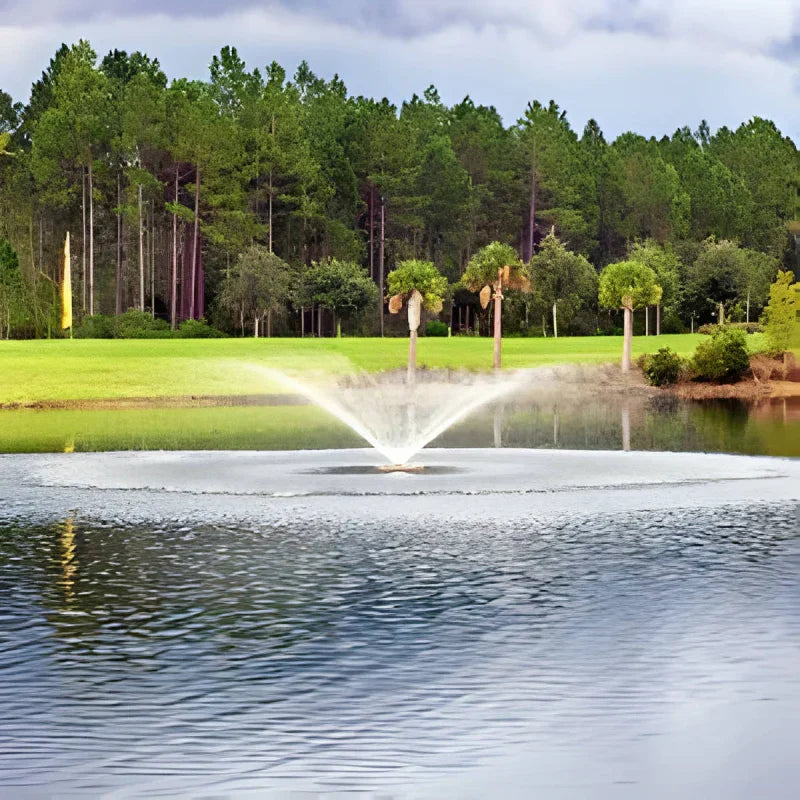

• Vertex Funnel Jet Floating Pond Fountain in water
1 3

Vertex

Vertex Funnel Jet Floating Pond Fountain

Vertex Funnel Jet Floating Pond Fountain

$9,480.00 USD
$9,480.00 USD
Sale Sold out
Shipping calculated at checkout.

FunnelJet Floating Fountain Series for Ponds and Lakes

Bring a stunning water display to your lake or pond with the FunnelJet floating fountain range. These fountains produce a wide, shimmering water ring, creating a beautiful focal point without blocking views. Constructed for durability, FunnelJet floating lake fountains feature fully sealed components and materials resistant to corrosion for long-term use. Expect years of dependable service. Each FunnelJet fountain includes a UL-certified control panel and a powerful submersible turbine pump.

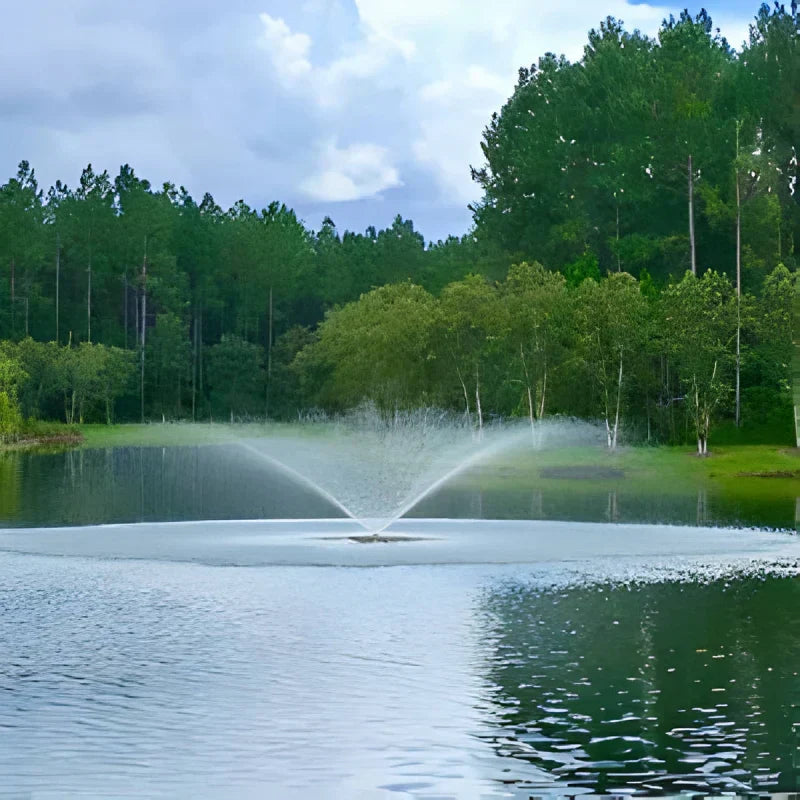

Vertex FunnelJet Floating Fountain Series - On Water with Trees at the Background

Key Features and Benefits

Nozzles

  • Precisely crafted brass/bronze or stainless steel nozzles

Pumps / Motors

  • Efficient turbine pump/motor assembly
  • Constructed from stainless steel
  • Water-cooled: no oils, seals, or o-rings required
  • 4-year warranty

Flotation

  • Robust rotocast polypropylene with UV protection
  • Separate leveling compartments for simple setup
  • 4-year warranty

Control Panel

  • UL listed, meeting National Electrical Code standards
  • Weather-resistant steel enclosures

Submersible Light Fixtures

  • Energy-efficient LED, 140 lumens/watt
  • Stainless steel housing
  • 2-year warranty

Cables

  • STW-A rated
  • 4-year warranty

Technical Specifications

Vertex FunnelJet Floating Pond Fountain - Tech Specs


 2 HP Unit
 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit
Minimum Operating Depth 3' 3' 4'
 5' 6'
Spray Height (A) 6' 7'
 8' 8′ 9′
Diameter (B) 25′ 30′ 35′ 45' 50′
LED Lights 3 3 3 3 3
Total Wattage 86W 86W 86W 86W 86W
AMP Draw 1 1 1 1 1
Available Phase 1 & 3 1 & 3 1 & 3 1 & 3 1 & 3
1 Phase (Volts) 230 230 230 230 230
3 Phase (Volts) 208 or 230 208 or 230 208 or 230 208 or 230 208 or 230
Display Heads Warranty 4-Year
 4-Year 4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year 1-Year
